HIMA TECHNOLOGY
HIMA LIGHT
TURBO
ENGINE
THE ENGINEERING BEHIND EXTREME BRIGHTNESS.
HIMA Light Turbo Engine is our proprietary optical performance system. Every component is precisely designed and engineered to maximize every photon from the source to the road.
More output. Better control. Longer distance.
EXTREME OUTPUT
MAXIMUM DISTANCE
SUPERIOR RELIABILITY
BUILT TO LAST

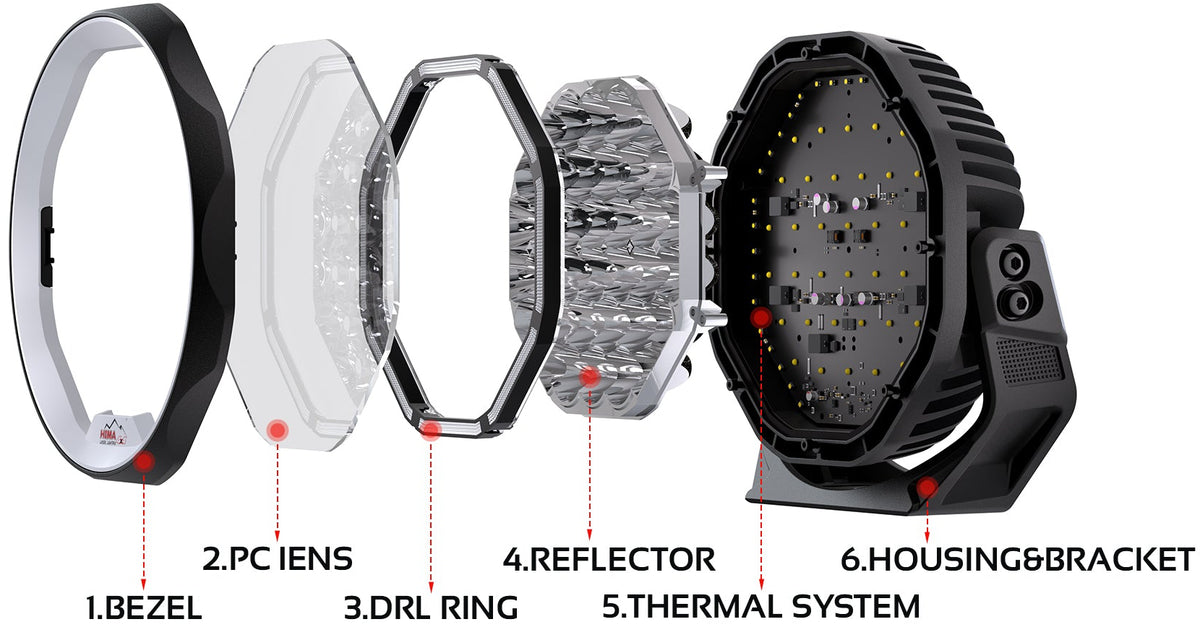

THE 5 CORE SYSTEMS OF LIGHT TURBO ENGINE
01
TURBO LED CORE
High-performance LED configuration for maximum light generation.
02
TURBO OPTICAL SYSTEM
Precision reflector and lens design to capture and concentrate more usable light.
03
TURBO BEAM CONTROL
Advanced optical design delivers a tight, long-range beam with high intensity.
04
TURBO THERMAL CONTROL
Efficient heat dissipation keeps performance stable in any condition.
05
TURBO STRUCTURAL ENGINEERING
Built with premium materials and precision manufacturing for extreme reliability.

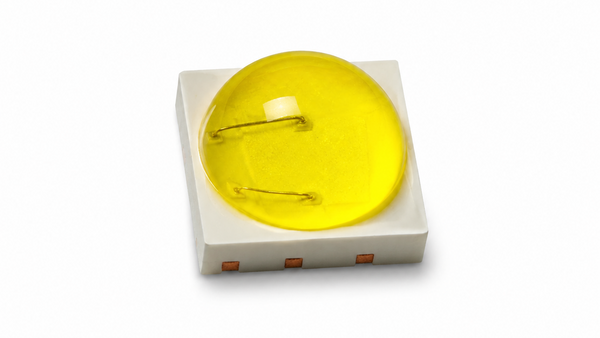

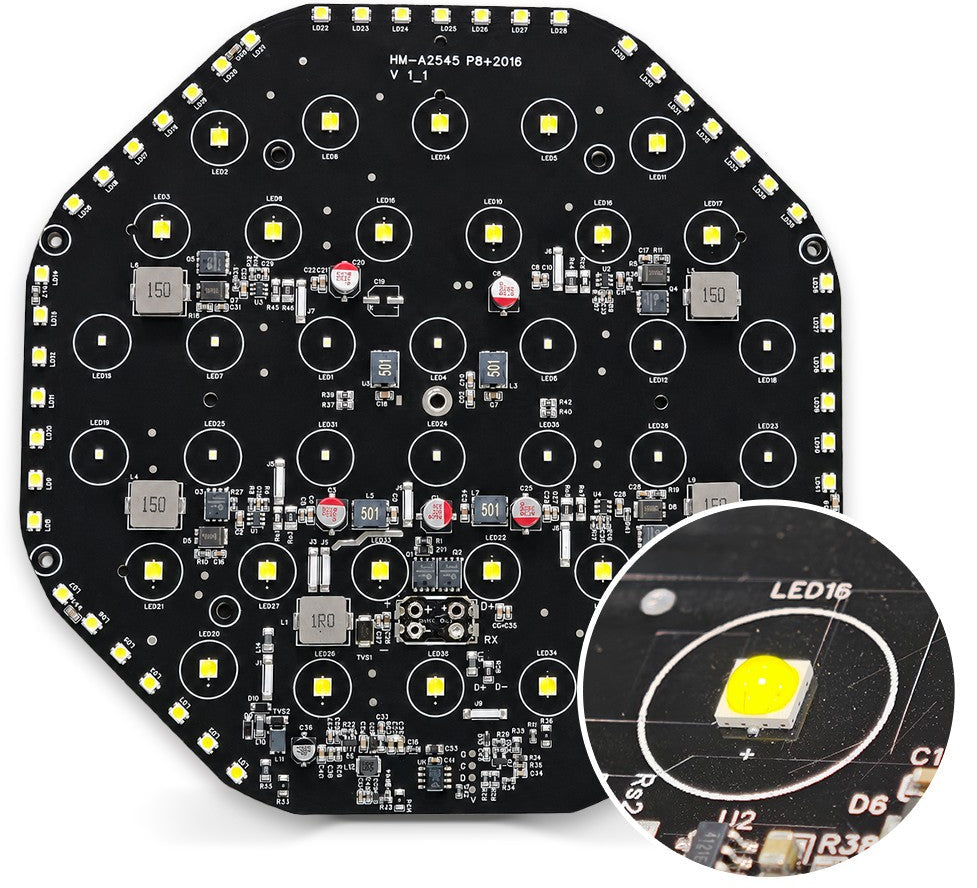

01
TURBO LED CORE

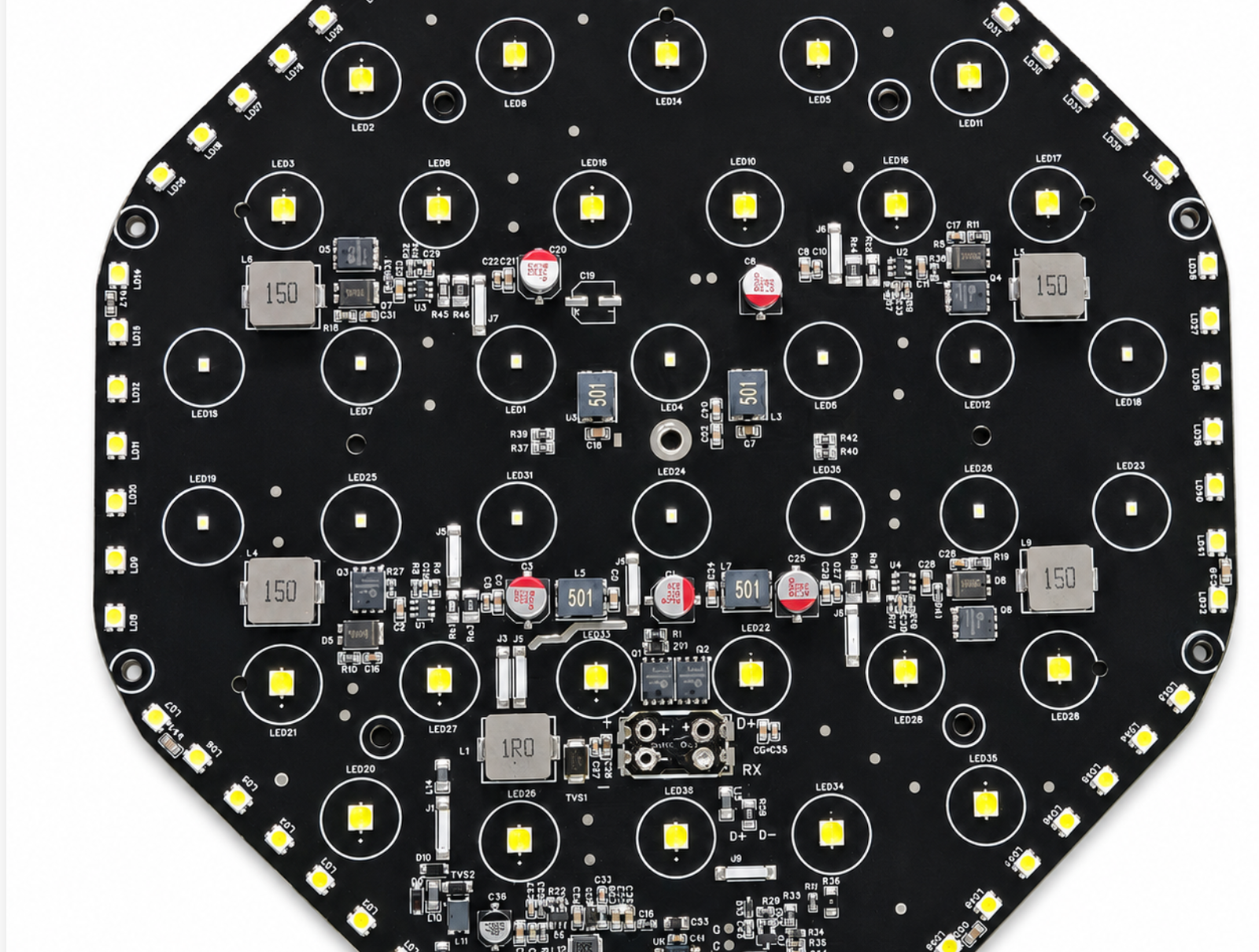

We select the highest performance LED chips and optimize the PCB layout and current control to generate extreme brightness with excellent efficiency.
- ✓Premium LED Chips: P8 + KW2016
- ✓High Efficiency: Up to 190lm/W
- ✓Color Temperature: 5700K
- ✓We select the highest performance LED chips and optimize the PCB layoutand current control to generate extreme brightness with excellent efficiency.
- ✓We select the highest performance LED chips and optimize the PCB layoutand current control to generate extreme brightness with excellent efficiency.
36
LEDs
190lm/W
Max Efficiency
5700K
Color Temperature
＞70
CRI
9-32v DC
Operating Voltage
02
TURBO OPTICAL SYSTEM
Our precision-engineered reflector and lens system is designed to collect every ray of light and deliver it exactly where you need it.
Reflector Material
Polycarbonate
Reflectivity
≥ 85%
Surface Coating
Vacuum Chrome Plating
Coating Thickness
0.04–0.06mm
Temperature Resistance
Up to 257℉ (125°C)
Reflector Thickness
0.8mm
Surface Flatness
≤ 0.05mm
Lens Material
Optical Grade PC
Light Transmittance
≥ 90%
UV Resistance
Yes
Impact Resistance
IK08

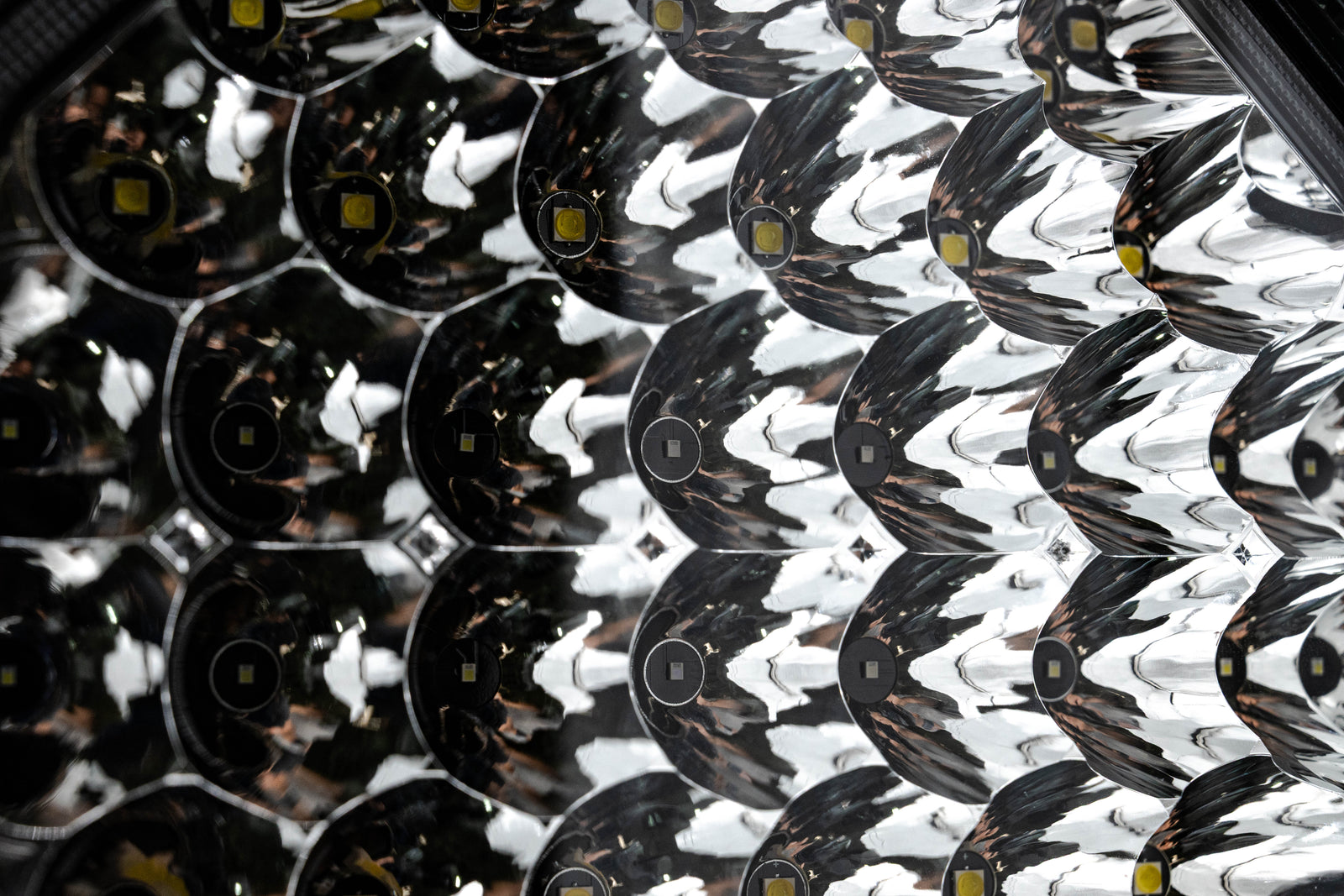

PRECISION REFLECTOR
Multi-faceted reflector geometry maximizes light collection and minimizes loss.

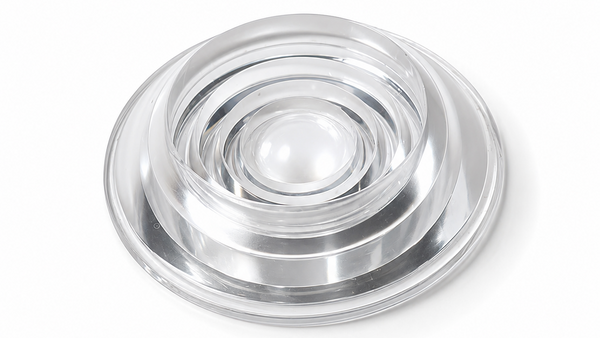

OPTICAL-GRADE LENS
High transmittance PC lens ensures maximum output and excellent durability.
ANTI-UV & ANTI-SCRATCH
Hard coating process provides superior protection for long-term clarity.

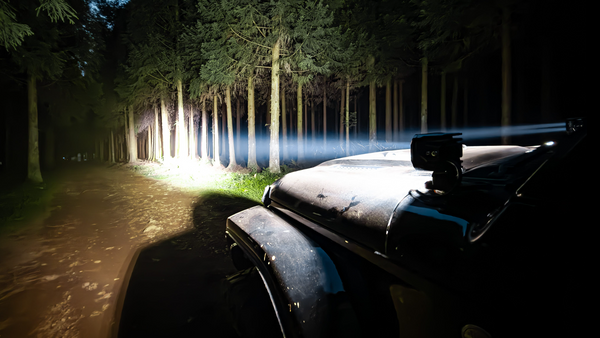

03
TURBO BEAM CONTROL
Beam control defines how far and how clearly you see. Through optical simulation and real-world validation, HIMA engineers create a precise beam pattern for maximum distance and wider road coverage.
The product shown is Hornet 9.
817487 Candela
Peak Beam Intensity
929yd (850m)
1 Lux Reach
32°
Spot Beam Angle
15547 lm
Total Lumen
04
TURBO THERMAL CONTROL
Heat is the enemy of brightness. Our advanced thermal management system ensures stable performance and long lifespan.
Thermal Conductivity
96–110 W/m·K
Heat Dissipation Capacity
≥ 135W (Maximum power 138W)
Operating Temperature
-40 ~ 149 ℉ ( -40 ~ 65 ℃ ）

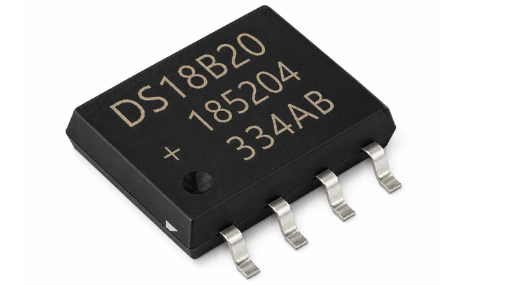

Thermal Protection
Intelligent Temperature IC

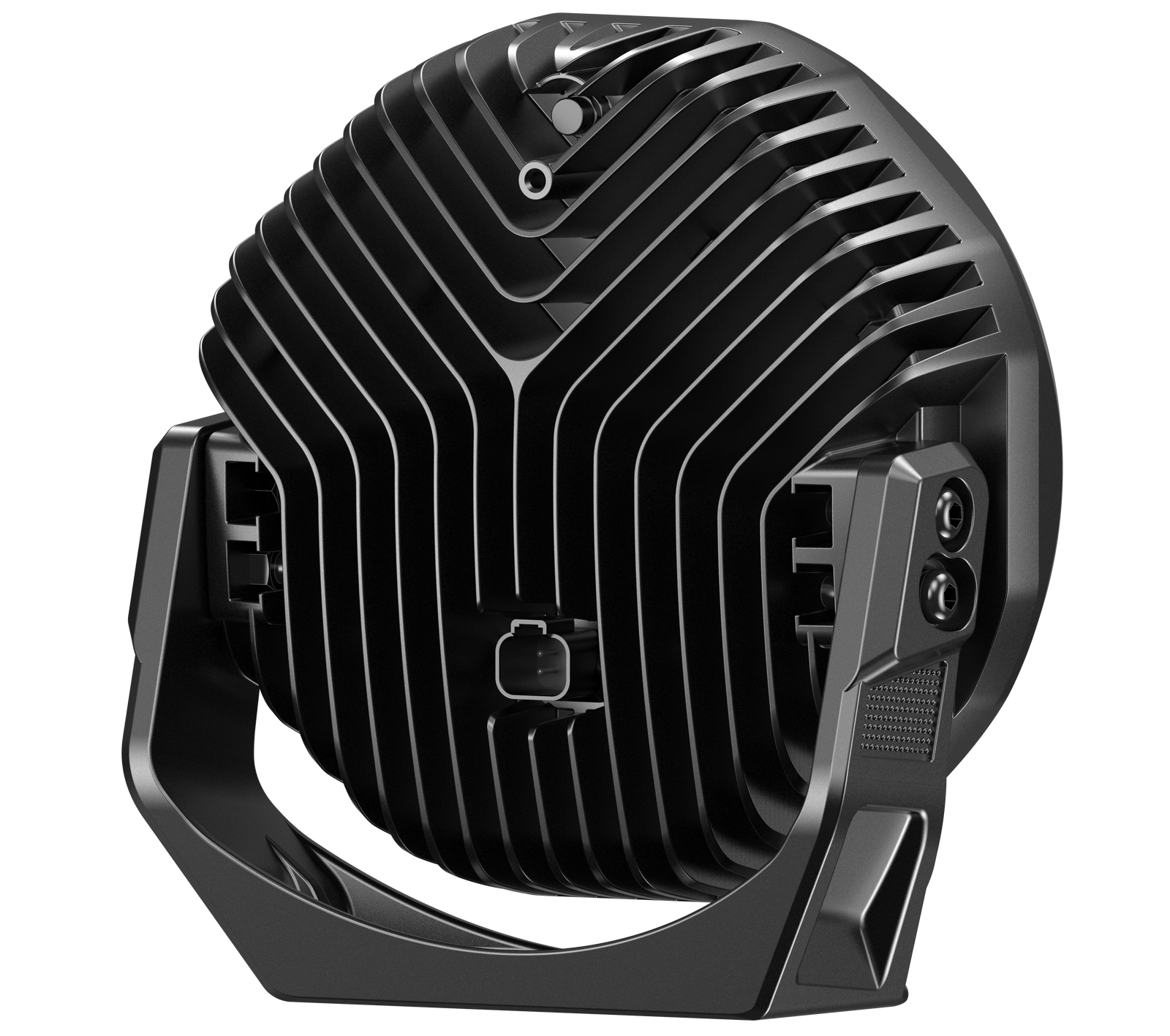

LARGE AREA HEAT SINK
Maximizes heat dissipation efficiency.

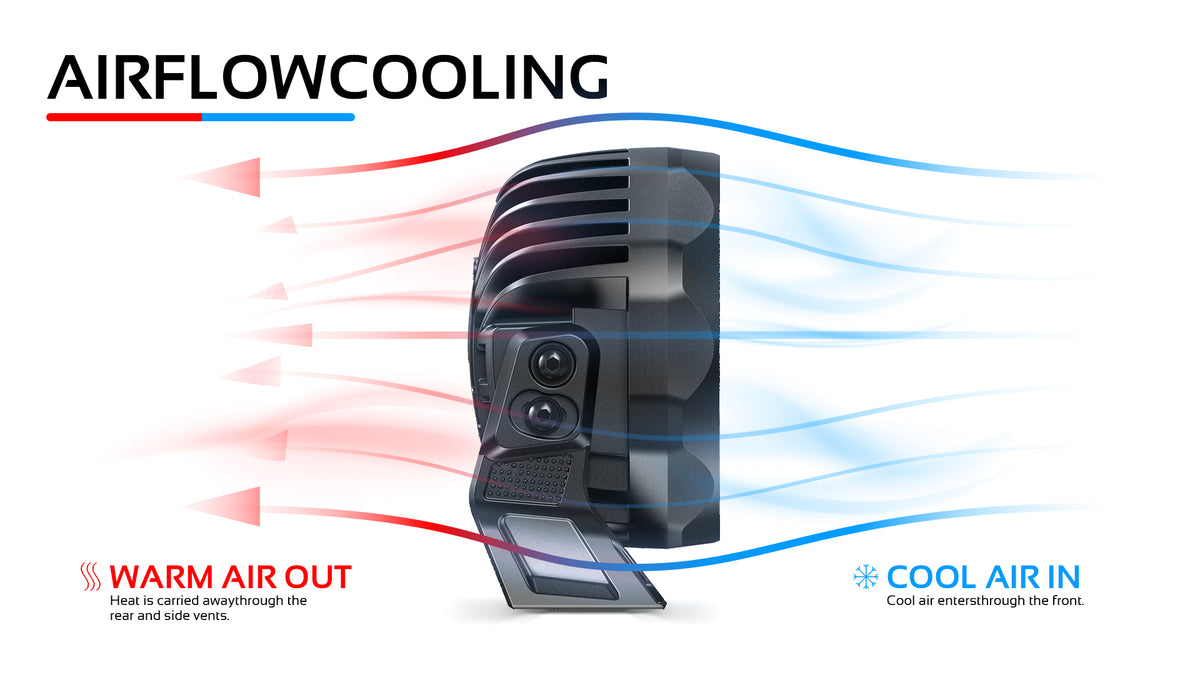

OPTIMIZED AIRFLOW DESIGN
Enhances convection for faster cooling.
INTELLIGENT TEMPERATURE CONTROL
Protects LEDs and maintains consistent output.
05
TURBO STRUCTURAL ENGINEERING
Built tough for the harshest environments. Every detail is engineered for strength and reliability.
Housing Material
ADC12 Die-cast Aluminum
Mounting Bracket
ADC12 Die-cast Aluminum
Surface Finish
Anti-corrosion Powder Coating
Salt Spray Test
1000H
Vibration Test
10G rms (10–2000Hz)
Waterproof Rating
IP68 / IP69K
Impact Resistance
IK10

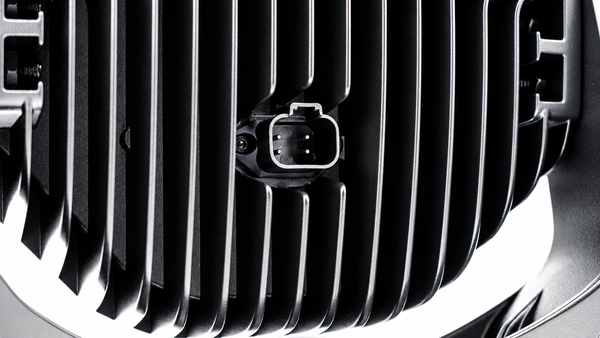

Connector
Deutsch DT 4-Pin
Lifespan
> 50,000 Hours
ANTI-CORROSION
Powder coating + ADC12 die-cast aluminum bracket for maximum durability.
SHOCK & VIBRATION RESISTANT
Engineered to withstand severe off-road vibration and impact.
RELIABLE CONNECTOR
Secure, waterproof connection ensures stable performance.
ENGINEERED TO OUTPERFORM.
BUILT TO TAKE YOU FURTHER.
HIMA Light Turbo Engine is more than technology —
it's our promise of performance, reliability and safety
for every off-road adventure.
