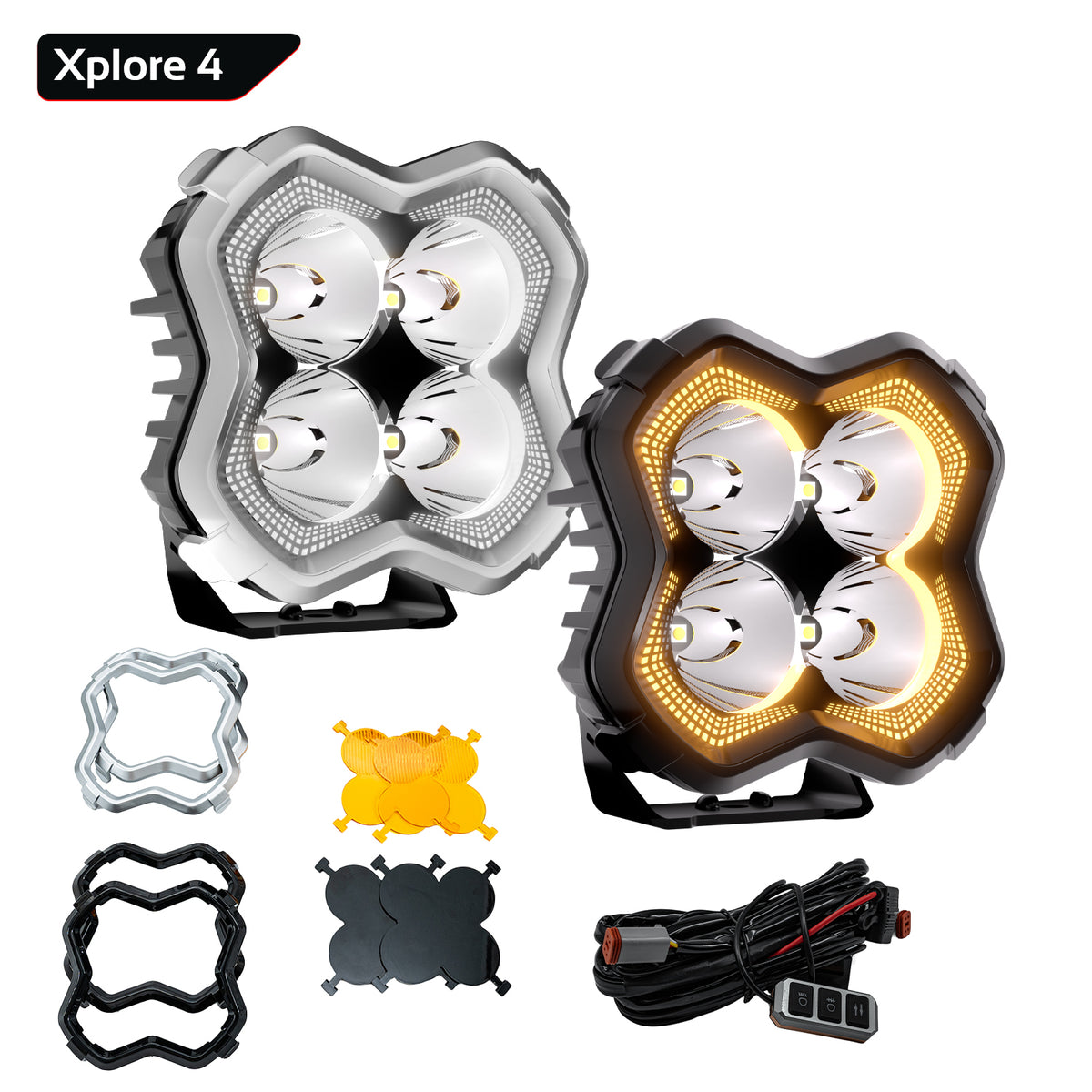

Xplore4 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL

In stock
No reviews
$249.50

• Removable Bezel System, customize the look to match your build

• 14 DRL Configurations, create a unique lighting style for every adventure.

• Interchangeable PC Filters, switch between spot and mixed beam patterns.

• Multi-Function Switch Included, control lighting modes with one simple touch.

• Premium Die-Cast Housing, delivers lasting durability in harsh environments.

Orders are reviewed within 24 hours. Delivery time may vary by warehouse, destination, and customs.
Covered by a 3-year limited warranty for manufacturing defects.
30-day return policy. Items must be unused, complete, and returned in original condition.
Need help before or after purchase? Contact us at support@hima4x4.com

KEY PARAMETERS（SINGLE）

0 Candela

Peak beam intensity

0 lm

Total Lumens

0 w

Wattage

0 m

Lighting Distance (1 lux)

DETAILS

TECHNICAL SPECIFICATIONS WHAT'S INCLUDED

Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Lighting Modes: High Beam + Yellow DRL
Lighting Technology: LED
Lighting Type: Forward Projecting
Wattage (W): 65W
Voltage Rating (V): 12/24V
Beam Angle: 21°
Lighting Distance: 1lux@623yd
Color Temperature: 5700k
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Mounting bracket Material: Iron
Wiring Harness Included: no
Terminal Connector: DT4
Terminal Type: Mating Connector
Wire material: Silicone wire
Switch Wire Length: 3m（12ft）
Housing Color: Gloss Black
Housing Material: ADC12 Powder Coat Cast Aluminum
Bezel Material: ADC12 Powder Coat Cast Aluminum
Average Rated Life (hr.): 50000hr
Universal or Specific: Universal

HIMA LIGHT TURBO ENGINE

The new generation of turbo lighting technology, featuring electronic heat dissipation, high-precision reflectors, and innovative lens tuning, continues to break records for the highest illuminance and highest lumens in aftermarket podlights of similar size.

LEARN MORE

TOOL-FREE REMOVABLE BEZELS, CUSTOMIZE YOUR LOOK ANYTIME

Xplore features interchangeable black and silver bezels that can be removed without tools. Customize the appearance with your own paint finish, or run the light without the bezel for a clean, flush-mounted look.

14-Mode Dynamic DRL System, Stand Out Every Time You Hit the Trail

The integrated DRL system offers 7 dynamic lighting effects with both white and amber color options, creating up to 14 different combinations. Switch between styles easily to match your vehicle and personal preference.

INTERCHANGEABLE PC FILTERS, SWITCH BETWEEN BEAM STYLES

Each Xplore light includes black and amber PC filters. The amber filter transforms the pure spot beam into a mixed beam pattern, combining long-range projection with wider road coverage for more versatile lighting performance.

INCLUDED MULTI-FUNCTION SWITCH, COMPLETE CONTROL AT YOUR FINGERTIPS

Every pair of Xplore lights comes with a dedicated multi-function switch, allowing quick control of DRL colors, lighting effects, brightness settings, and beam functions from one compact controller.

ADC12 DIE-CAST ALUMINUM HOUSING WITH MODULAR BEZEL DESIGN, BUILT FOR DURABILITY AND PERSONALIZATION

Xplore features a precision die-cast ADC12 aluminum housing with a durable powder-coated finish, providing excellent strength and long-term resistance against harsh off-road conditions.

The modular bezel system allows quick tool-free customization, letting you choose different finishes or run the light without the bezel for a clean and aggressive appearance.

IP68/IP69K FULLY SEALED CONSTRUCTION, RELIABLE PERFORMANCE IN ANY ENVIRONMENT

Built with a fully sealed structure, Xplore is rated IP68/IP69K for reliable protection against water, dust and harsh outdoor conditions.

Whether facing heavy rain, muddy trails or high-pressure washing, Xplore is engineered to maintain consistent performance during demanding off-road adventures.

PRECISION REFLECTOR WITH INTERCHANGEABLE PC FILTERS, ADAPT BEAM PERFORMANCE FOR DIFFERENT TRAILS

Xplore uses a precision optical reflector designed for focused forward projection and efficient light output.

With included black and amber PC filters, users can easily adjust the beam character — from a concentrated spot beam to a mixed beam pattern combining long-range projection with wider road coverage.

REAL-WORLD TESTING

See The Beam. Feel The Difference.

Captured under real testing conditions to reveal the true light output.

Brightness Output

Testing Conditions

Camera Nikon Z6III
Focal length 13mm
ISO 800
Aperture f/2.8
Shutter 1/30 sec.
Distance 10 m (10.9yd)

1. All beam images were captured using the same camera settings and test distance for consistent comparison.
2. Images are shown without brightness enhancement.

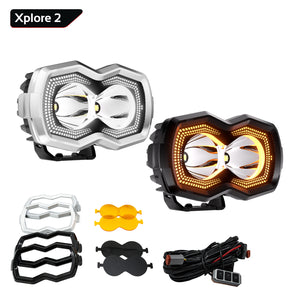

Xplore2 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL
View Product

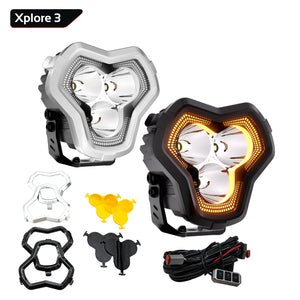

Xplore3 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL
View Product
Xplore4 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL
CURRENT MODEL

Compare Products

Peak Beam Intensity
Total Lumens
Beam Pattern
Dynamic Light Functions
Pod Size
Lighting Quantity
Lighting Type
Wattage
Voltage Rating
Beam Angle
Lighting Distance
Color Temperature
Lens Color
Lens Material
Mounting Hardware Included
Mounting Hardware Material
Mounting Bracket Material
Wiring Harness Included
Terminal Connector
Wire Material
Switch Wire Length
Housing Material
Bezel Material
Average Rated Life
Universal or Specific
Accessories Included
Xplore2 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL

Xplore2 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL

View Product
Xplore3 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL

Xplore3 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL

View Product
Xplore4 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL

Xplore4 LED AUXILIARY LIGHT POD PAIR - UNIVERSAL

CURRENT MODEL

168672 cd

99257 cd

293929 cd

2066.8 lm

2507.4 lm

4362 lm

Spot

Spot

Spot

Welcome Light
White & Amber Switching
7 Effects Available for Each Color

Welcome Light
White & Amber Switching
7 Effects Available for Each Color

Welcome Light
White & Amber Switching
7 Effects Available for Each Color

4.5 inch

3 inch

4.5 inch

2 LED

3 LED

4 LED

Forward Projecting

Forward Projecting

Forward Projecting

33W

50W

65W

12/24V

12/24V

12/24V

15°

20°

21°

1lux@280m (306yd)

1lux@320m (349yd)

1lux@570m (623yd)

5700K

5700K

5700K

Clear

Clear

Clear

Hardcoated Polycarbonate

Hardcoated Polycarbonate

Hardcoated Polycarbonate

Yes

Yes

Yes

Stainless Steel

Stainless Steel

Stainless Steel

Powder Coated Iron

Powder Coated Iron

Powder Coated Iron

Yes

Yes

Yes

Mating Connector DT4

Mating Connector DT4

Mating Connector DT4

Silicone Wire

Silicone Wire

Silicone Wire

3m (12ft)

3m (12ft)

3m (12ft)

ADC12 Powder Coat Cast Aluminum

ADC12 Powder Coat Cast Aluminum

ADC12 Powder Coat Cast Aluminum

Polycarbonate

Polycarbonate

Polycarbonate

50000 hr

50000 hr

50000 hr

Universal

Universal

Universal

1 Pair Silver PC Bezel

1 Pair Black PC Bezel

1 Pair Blackout Cover

1 Pair Amber Driving Beam Filter

1 Pair Silver PC Bezel

1 Pair Black PC Bezel

1 Pair Blackout Cover

1 Pair Amber Driving Beam Filter

1 Pair Silver PC Bezel

1 Pair Black PC Bezel

1 Pair Blackout Cover

1 Pair Amber Driving Beam Filter

Questions? Answers.

Yes. Xplore features a tool-free removable bezel system with interchangeable black and silver bezel options. You can install the bezel for a premium finished look, customize it with your own paint, or remove it completely for a cleaner, flush appearance.

Xplore provides up to 14 DRL combinations. The built-in dynamic lighting system supports 7 different animation effects, and each effect can be switched between white and amber DRL colors, allowing you to create a unique lighting style for your vehicle.

Yes. Xplore includes interchangeable PC filters that allow you to adjust the beam pattern according to your driving needs. The standard configuration provides a focused spot beam for long-distance illumination, while installing the amber filter creates a mixed beam pattern that combines spot projection with wider driving coverage.
